Understanding Pointers in C++: Part I

Before diving into the problem, let’s first define a “node” structure:

struct ListNode {
  int value;
  ListNode* next;
  ListNode(int x): value(x), next(NULL) {}
};

With the above structure, we can create 3 nodes like this:

ListNode* head = new ListNode(1);
ListNode* node2 = new ListNode(2);
ListNode* node3 = new ListNode(3);

Let’s explain the meaning of the above assignment statements in more detail:

• The new ListNode(1) operator allocates memory on the HEAP and returns the address of this memory region.
• ListNode* head: declares a pointer variable that points to the ListNode data type; this pointer variable is stored on the STACK.
• The assignment ListNode* head = new ListNode(1): assigns a memory address to a pointer. An assignment involving a pointer usually has a pointer on the left side and a memory address $X$ on the right side. Thus, the assignment can be understood as: the pointer head points to the memory location at address $X$, which stores ListNode(1).

Illustration:

Next, link these 3 nodes together to create a singly linked list:

head->next = node2;
node2->next = node3;

The above assignments are explained in a completely similar way (you will notice that essentially, this operation is the same as the allocation above):

• head is a pointer variable on the STACK that points to memory on the HEAP of type ListNode containing value=1 and next=NULL. Thus, head->next is the next pointer variable within that ListNode on the HEAP.
• The command head->next = node2 has a pointer on its left side and the address of the memory on the HEAP that node2 is pointing to on its right side (value=2 and next=NULL). As analyzed above, this assignment makes the head->next pointer point to the memory location at the address of node2.

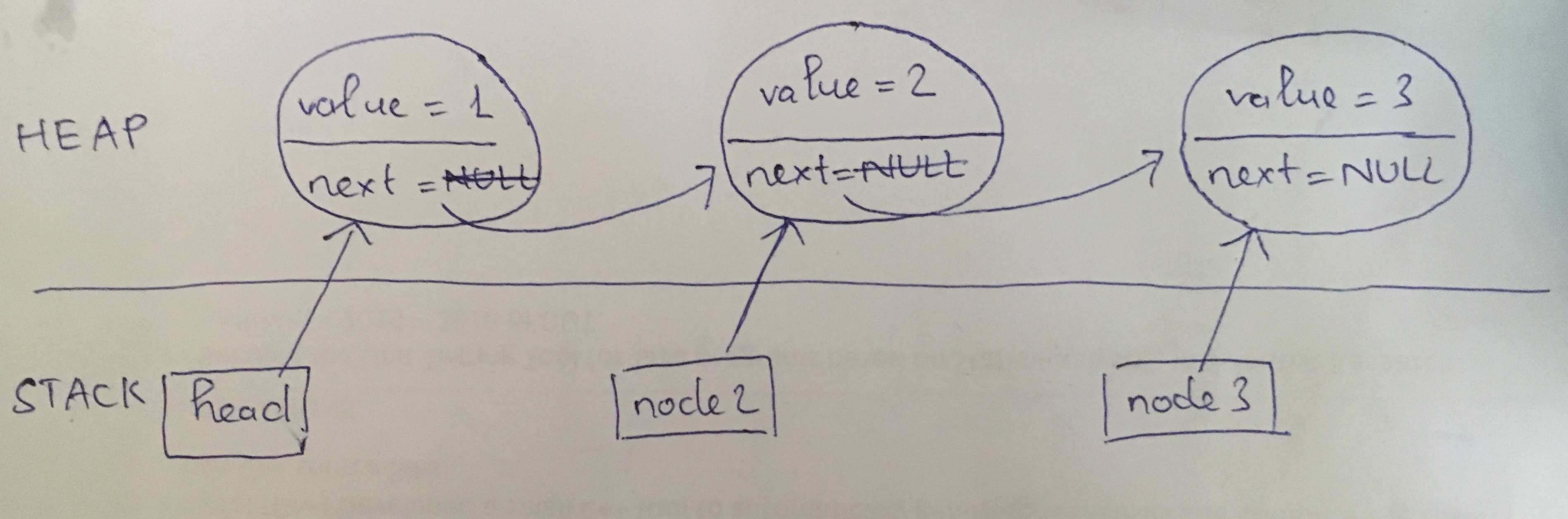

Analyzing the remaining command similarly, we have the following illustration:
